[Experiment] DIY Robotic 2 wheel drive car using L298N motor driver and NodeMCU | ESP 8266

 DIY 2 Wheel drive robotic car

In this experiment we will learn building 2 wheel drive robotic car using 2wd kit and L298N motor driver. We will use Websockets to control this car from mobile browser.



Lets first start building the car.

Components needed

1. 2WD car kit
    a. Chassis
    b. 2 BO motor with soldered wires
    c. 2 BO Wheels
    d. Screws, nuts and spacers
    e. Mounting accessories
    f. 12V Battery pack. You can use battery pack provided by kit
    g. Front ball wheel
2. L298N motor driver



3. Jumper wires, DC female jack adaptor wire.
4. NodeMCU

Connections

NodeMCU    L298N driver

        D2                    IN1
        D5                    IN2
        D6                    IN3
        D7                    IN4
        Vcc                    5V
        G                      Gnd

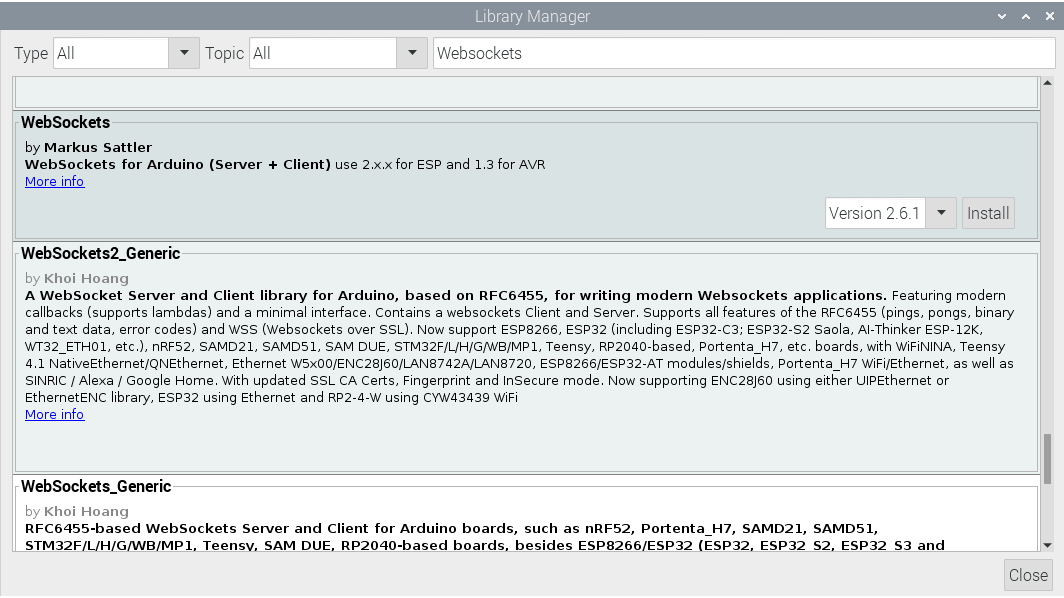

Got to Library Manager and search Websockets.



Code

/*
 * This ESP8266 NodeMCU code was developed by newbiely.com
 *
 * This ESP8266 NodeMCU code is made available for public use without any restriction
 *
 */

#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <WebSocketsServer.h>
#include "index.h"

#define CMD_STOP 0
#define CMD_FORWARD 1
#define CMD_BACKWARD 2
#define CMD_LEFT 4
#define CMD_RIGHT 8


#define IN1_PIN D2  // The ESP8266 pin connected to the IN1 pin L298N
#define IN2_PIN D5  // The ESP8266 pin connected to the IN2 pin L298N
#define IN3_PIN D6  // The ESP8266 pin connected to the IN3 pin L298N
#define IN4_PIN D7  // The ESP8266 pin connected to the IN4 pin L298N


const char* ssid = "Your SSID";     // CHANGE IT
const char* password = "Your Password";  // CHANGE IT

ESP8266WebServer server(80);                        // Web server on port 80
WebSocketsServer webSocket = WebSocketsServer(81);  // WebSocket server on port 81

void webSocketEvent(uint8_t num, WStype_t type, uint8_t* payload, size_t length) {
  switch (type) {
    case WStype_DISCONNECTED:
      Serial.printf("[%u] Disconnected!\n", num);
      break;
    case WStype_CONNECTED:
      {
        IPAddress ip = webSocket.remoteIP(num);
        Serial.printf("[%u] Connected from %d.%d.%d.%d\n", num, ip[0], ip[1], ip[2], ip[3]);
      }
      break;
    case WStype_TEXT:
      //Serial.printf("[%u] Received text: %s\n", num, payload);
      String angle = String((char*)payload);
      int command = angle.toInt();
      Serial.print("command: ");
      Serial.println(command);

      switch (command) {
        case CMD_STOP:
          Serial.println("Stop");
          CAR_stop();
          break;
        case CMD_FORWARD:
          Serial.println("Move Forward");
          CAR_moveForward();
          break;
        case CMD_BACKWARD:
          Serial.println("Move Backward");
          CAR_moveBackward();
          break;
        case CMD_LEFT:
          Serial.println("Turn Left");
          CAR_turnLeft();
          break;
        case CMD_RIGHT:
          Serial.println("Turn Right");
          CAR_turnRight();
          break;
        default:
          Serial.println("Unknown command");
      }

      break;
  }
}

void setup() {
  Serial.begin(9600);

  pinMode(IN1_PIN, OUTPUT);
  pinMode(IN2_PIN, OUTPUT);
  pinMode(IN3_PIN, OUTPUT);
  pinMode(IN4_PIN, OUTPUT);

  // Connect to Wi-Fi
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi...");
  }
  Serial.println("Connected to WiFi");

  // Initialize WebSocket server
  webSocket.begin();
  webSocket.onEvent(webSocketEvent);

  // Serve a basic HTML page with JavaScript to create the WebSocket connection
  server.on("/", HTTP_GET, []() {
    Serial.println("Web Server: received a web page request");
    String html = HTML_CONTENT;
    server.send(200, "text/html", html);
  });

  server.begin();
  Serial.print("ESP8266 Web Server's IP address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  // Handle client requests
  server.handleClient();

  // Handle WebSocket events
  webSocket.loop();

}

void CAR_moveForward() {
  digitalWrite(IN1_PIN, HIGH);
  digitalWrite(IN2_PIN, LOW);
  digitalWrite(IN3_PIN, HIGH);
  digitalWrite(IN4_PIN, LOW);
}

void CAR_moveBackward() {
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, HIGH);
  digitalWrite(IN3_PIN, LOW);
  digitalWrite(IN4_PIN, HIGH);
}

void CAR_turnLeft() {
  digitalWrite(IN1_PIN, HIGH);
  digitalWrite(IN2_PIN, LOW);
  digitalWrite(IN3_PIN, LOW);
  digitalWrite(IN4_PIN, LOW);
}

void CAR_turnRight() {
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  digitalWrite(IN3_PIN, HIGH);
  digitalWrite(IN4_PIN, LOW);
}

void CAR_stop() {
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  digitalWrite(IN3_PIN, LOW);
  digitalWrite(IN4_PIN, LOW);
}



Now open new tab from top right corner of current sketch
create a new file called index.h
/*
 * This ESP8266 NodeMCU code was developed by newbiely.com
 *
 * This ESP8266 NodeMCU code is made available for public use without any restriction
 */

const char *HTML_CONTENT = R"=====(
<!DOCTYPE html>
<html>
<head>
<title>ESP8266 Control Car via Web</title>
<meta name="viewport" content="width=device-width, initial-scale=0.7, maximum-scale=1, user-scalable=no">
<style type="text/css">
body { text-align: center; font-size: 24px;}
button { text-align: center; font-size: 24px;}
#container {
    margin-right: auto;
    margin-left: auto;
  width: 400px;
    height: 400px;
    position: relative;
    margin-bottom: 10px;
}
div[class^='button'] { position: absolute; }
.button_up, .button_down { width:214px; height:104px;}
.button_left, .button_right { width:104px; height:214px;}
.button_stop { width:178px; height:178px;}
.button_up {
    background: url('https://newbiely.com/images/tutorial/up_inactive.png') no-repeat;
  background-size: contain;
    left: 200px;
    top: 0px;
  transform: translateX(-50%);
}

.button_down {
    background: url('https://newbiely.com/images/tutorial/down_inactive.png') no-repeat;
  background-size: contain;
    left:200px;
    bottom: 0px;
  transform: translateX(-50%);
}

.button_right {
    background: url('https://newbiely.com/images/tutorial/right_inactive.png') no-repeat;
  background-size: contain;
    right: 0px;
    top: 200px;
  transform: translateY(-50%);
}

.button_left {
    background: url('https://newbiely.com/images/tutorial/left_inactive.png') no-repeat;
  background-size: contain;
    left:0px;
    top: 200px;
  transform: translateY(-50%);
}

.button_stop {
  background: url('https://newbiely.com/images/tutorial/stop_inactive.png') no-repeat;
  background-size: contain;
    left:200px;
    top: 200px;
  transform: translate(-50%, -50%);
}
</style>
<script>
var CMD_STOP     = 0;
var CMD_FORWARD  = 1;
var CMD_BACKWARD = 2;
var CMD_LEFT     = 4;
var CMD_RIGHT    = 8;
var img_name_lookup = {
  [CMD_STOP]:     "stop",
  [CMD_FORWARD]:  "up",
  [CMD_BACKWARD]: "down",
  [CMD_LEFT]:     "left",
  [CMD_RIGHT]:    "right"
}
var ws = null;

function init()
{

  var container = document.querySelector("#container");
    container.addEventListener("touchstart", mouse_down);
    container.addEventListener("touchend", mouse_up);
    container.addEventListener("touchcancel", mouse_up);
    container.addEventListener("mousedown", mouse_down);
    container.addEventListener("mouseup", mouse_up);
    container.addEventListener("mouseout", mouse_up);
}
function ws_onmessage(e_msg)
{
    e_msg = e_msg || window.event; // MessageEvent

    //alert("msg : " + e_msg.data);
}
function ws_onopen()
{
  document.getElementById("ws_state").innerHTML = "OPEN";
  document.getElementById("wc_conn").innerHTML = "Disconnect";
}
function ws_onclose()
{
  document.getElementById("ws_state").innerHTML = "CLOSED";
  document.getElementById("wc_conn").innerHTML = "Connect";
  console.log("socket was closed");
  ws.onopen = null;
  ws.onclose = null;
  ws.onmessage = null;
  ws = null;
}
function wc_onclick()
{
  if(ws == null)
  {
    ws = new WebSocket("ws://" + window.location.host + ":81");
    document.getElementById("ws_state").innerHTML = "CONNECTING";

    ws.onopen = ws_onopen;
    ws.onclose = ws_onclose;
    ws.onmessage = ws_onmessage;
  }
  else
    ws.close();
}
function mouse_down(event)
{
  if (event.target !== event.currentTarget)
  {
    var id = event.target.id;
    send_command(id);
    event.target.style.backgroundImage = "url('https://newbiely.com/images/tutorial/" + img_name_lookup[id] + "_active.png')";
    }
    event.stopPropagation();
    event.preventDefault();
}

function mouse_up(event)
{
  if (event.target !== event.currentTarget)
  {
    var id = event.target.id;
    send_command(CMD_STOP);
    event.target.style.backgroundImage = "url('https://newbiely.com/images/tutorial/" + img_name_lookup[id] + "_inactive.png')";
    }
    event.stopPropagation();
    event.preventDefault();
}
function send_command(cmd)
{
  if(ws != null)
    if(ws.readyState == 1)
      ws.send(cmd + "\r\n");
}

window.onload = init;
</script>
</head>
<body>
<h2>ESP8266 - RC Car via Web</h2>
<div id="container">
  <div id="0" class="button_stop"></div>
    <div id="1" class="button_up"></div>
    <div id="2" class="button_down"></div>
    <div id="8" class="button_right"></div>
    <div id="4" class="button_left"></div>
</div>
<p>
WebSocket : <span id="ws_state" style="color:blue">closed</span><br>
</p>
<button id="wc_conn" type="button" onclick="wc_onclick();">Connect</button>
<br>
<br>
<div class="sponsor">Sponsored by <a href="https://amazon.com/diyables">DIYables</a></div>
</body>
</html>
)=====";

Now go to mobile browser connect to same network given in the code.
Get the IP of the NodeMCU and input it in browser as URL.
Quick Summary video below
